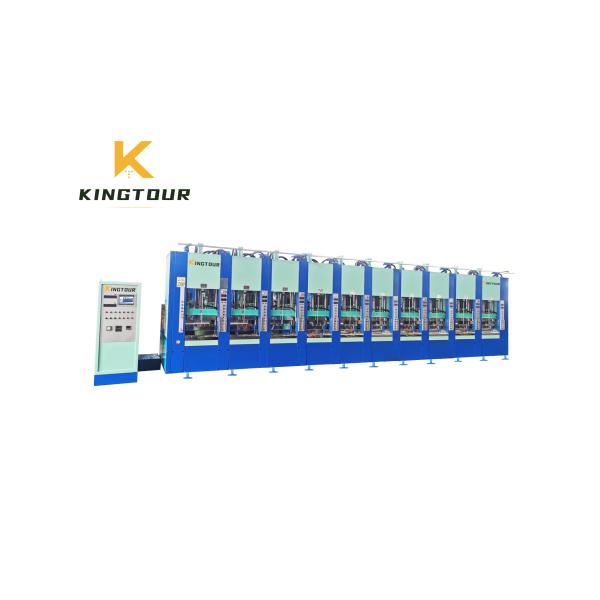

10 Station EVA Shoes Injection Machine 380V / 220V Footwear Manufacturing Machine KT-6860

Name: 10 Station EVA Shoes Injection Machine 380V 220V Footwear Manufacturing Machine KT6860
Brand: KINGTOUR
Price: 89 USD

Place of Origin : GUANGDONG,CHINA

Brand Name : KINGTOUR

MOQ : 1 SET

Price : $89,900-95,900

Product name : EVA Shoes Injection Machine

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Bearing, Gearbox, Motor, Pump

production capacity : 320-420 Pairs/hour

voltage : 380V/220V 3 Phase

power(w) : 182000

dimension(l*w*h) : 12100*4600*3050mm

warranty : 1.5 Years

key selling points : Easy to Operate

Weight (KG) : 28000

Function : To make EVA product

Raw material : EVA

Required labor : 1-2 workers

Finished Products : EVA product

Certification : CE

Packaging Details : Professional safety export package

Delivery Time : 5-35 Days

Payment Terms : TT,LC,DP

Supply Ability : 100 Set Per Month

Contact Now

Product Overview

KT-6860 10 Station EVA Injection Molding Machine

This machine can make various kinds of slipper, shoe, sandal, boot and sole with EVA material.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The high clamping force for the production of every kind of EVA items and it enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Each mould-holder fits 2 moulds, Automatic compensation of the mould plates,Fast opening of mould-holders thanks to toggle system,350 mm opening stroke.

5. One station with one set mold,pressure, time of moulding,mould temperature and cooling time all controlled
independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Low operate platform,Operating height is ergonomic and comfortable .

9. It does not need water cooling circulation for mold station.

10. Automatic safety door and fence structure ensure the safety of personnel.

FEATURES AT A GLANCE

Specification of EVA slipper making machine
Model: KT-686o
Production: 600-800 Pcs/Hour
Work station: 10 Station
Clamping force: 180 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 9.8 kw*2
Heating plate: 116.8 kw
Hydraulic system:51.9 kw
Total power: 190 kw
Temperature control: 4 section
Machine dimension: 12100*4600*3050 mm
Machine weight: 39800 kgs
Loading into two 40 feet container

10 Station EVA Shoes Injection Machine 380V / 220V Footwear Manufacturing Machine KT-6860

Machine in our factory

Machine in customer's factory

Machine from back side

Finished samples

Flip flop sample produced by our machine

You can send me your ideal design to us, we can customized the mold with your logo and other requirements.

Slipper sample produced by our machine

We have more than 10,000 designs in our sample room, please contact me for more designs.

Machine Video

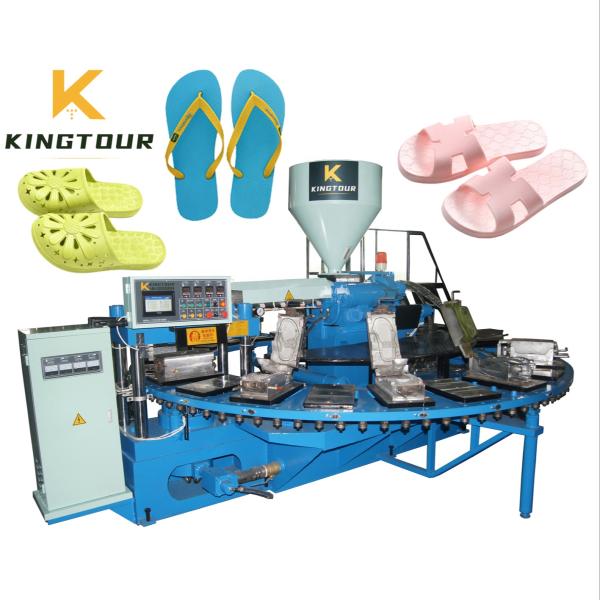

Slipper Making Machine

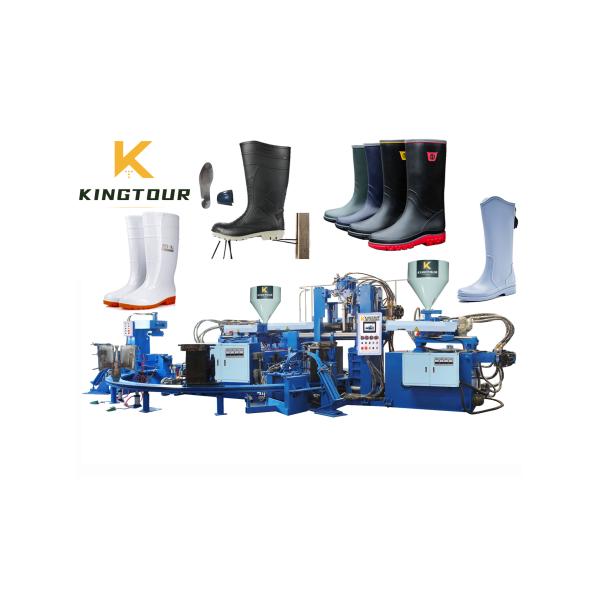

Rain Boot Making Machine

Plastic Shoe Making Machine

1 Color Sole Making Machine

2 Color Sole Making Machine

3 Color Sole Making Machine

Static 2 Station Sole Making Machine

Static 3 Station Sole Making Machine

Static 4 Station Sole Making Machine

1 Color DIP Shoe Making Machine

2 Color DIP Shoe Making Machine

PP Insole Making Machine

PRODUCT CONFIGURATION

SIEMENS PLC control system

Imported control valve

Power saving of servo system

CONTAINER LOADING

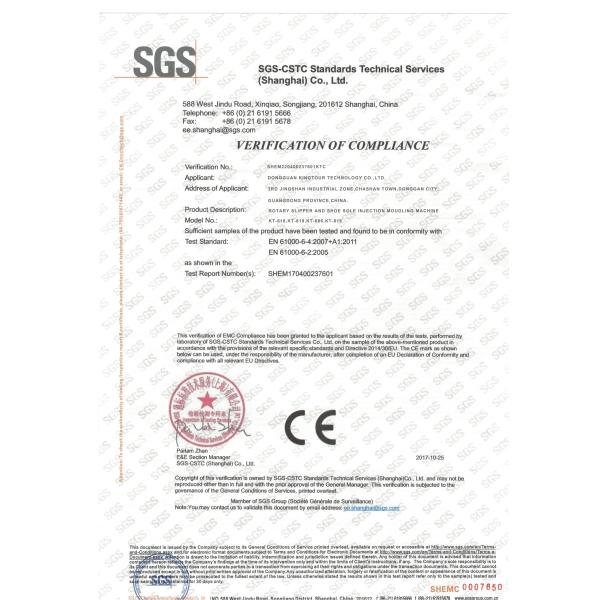

Certificate

SALES AND SERVICE NETWORK
